Brett,

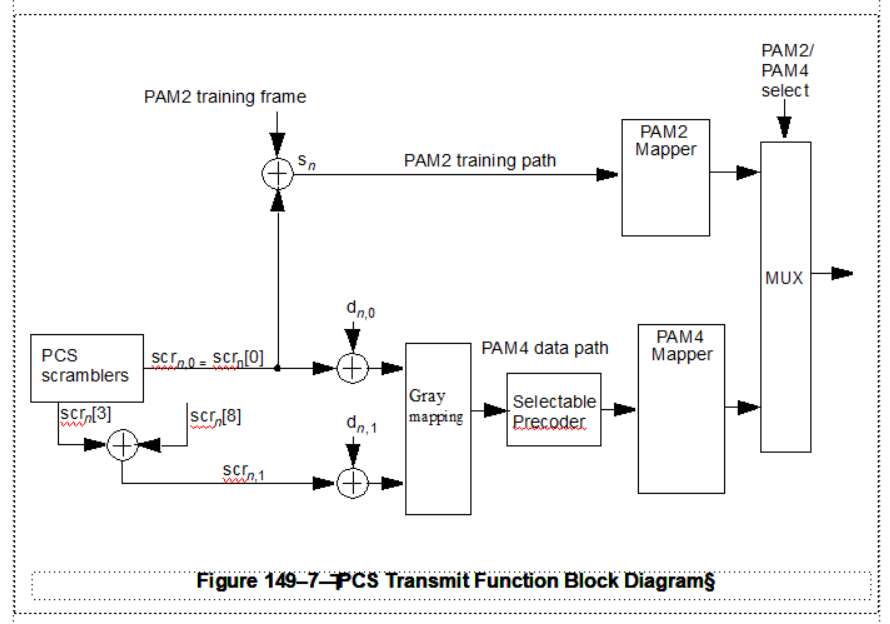

I had lost my original updates with my computer crash yesterday morning. Here is what I planned to change the title to “PCS Transmit Function Block Diagram”. Is this acceptable?
Thanks,
Sent: Wednesday, January 16, 2019 6:54 PM
To: NATALIE WIENCKOWSKI; STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx; George Zimmerman
Subject: RE: Comment #115 redrawing of Figure 149-7
Thank you Natalie.
The ‘_n’ notation is supposed be a subscript.
Now that this figure is moved to subclause 149.3.2.2 PCS Transmit function, can we change the title to something appropriate for the section?
PCS Transmit Function?
Brett
From: NATALIE WIENCKOWSKI <nwienckowski@xxxxxxx>
Sent: Wednesday, January 16, 2019 3:33 PM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx; George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>; Brett McClellan <bmc@xxxxxxxxxxx>
Subject: [EXT] Re: Comment #115 redrawing of Figure 149-7
External Email
I believe the update below addresses your proposed changes. Please let me know if this is not the case.
From: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 2:24 PM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7
Thanks, Brett – this seems reasonable – where was the reference to DS_n[0] and DS_n[1]? (I can’t find it). The ones I was referring to are the Scr_n[0], Scr_n[3] and Scr_n[8] (without the extra comma in the subscript) which relate to the nomenclature in Figure 149-10 and equation 149-8 used for the side stream scrambler.
George A. Zimmerman, Ph.D.
President & Principal Consultant
CME Consulting, Inc.
Experts in PHYsical Layer Communications
1-310-920-3860
From: Brett McClellan <bmc@xxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 10:19 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7
Natalie,

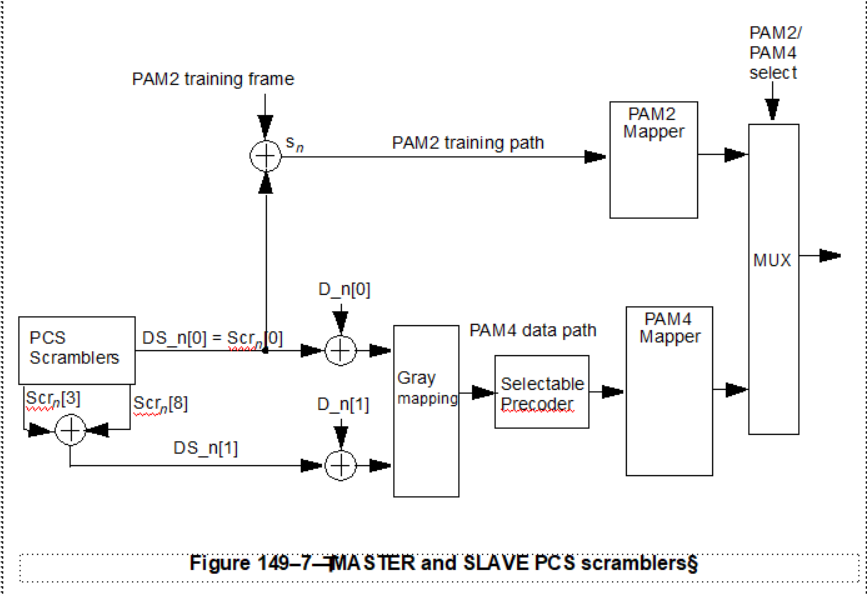

I suggest changing Scr_n,0 and Scr_n,1 to DS_n[0] and DS_n[1] and change d_n,0 and d_n,1 to D_n[0] and D_n[1] because those terms were accepted as the text for the data scrambler section.
Brett
From: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 9:31 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: [EXT] Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7
External Email
A very minor thing on the nomenclature – the scrambler bits are Scrn with a capital S, not scrn all lower case.
George A. Zimmerman, Ph.D.
President & Principal Consultant
CME Consulting, Inc.
Experts in PHYsical Layer Communications
1-310-920-3860
From: NATALIE WIENCKOWSKI <nwienckowski@xxxxxxx>
Sent: Tuesday, January 15, 2019 9:04 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7
Resending
Natalie
Sent from my Sprint Samsung Galaxy S8.
-------- Original message --------
From: NATALIE WIENCKOWSKI <NWIENCKOWSKI@xxxxxxx>
Date: 1/14/19 10:02 PM (GMT-08:00)
Subject: Comment #115 redrawing of Figure 149-7
Colleagues,
Please look at the proposed changes to Figure 149-7 based on the decision in Comment #115 to make this a block diagram and move it to Section 149.3.2.2.
Please plan to request any desired changes tomorrow.
Thanks,
Natalie
